This page is dedicated to discussion of the engine, transmission, suspension and rear-end..


According to Auto Math, my mile E.T. will be ~ 12.19 seconds

Dyno runs

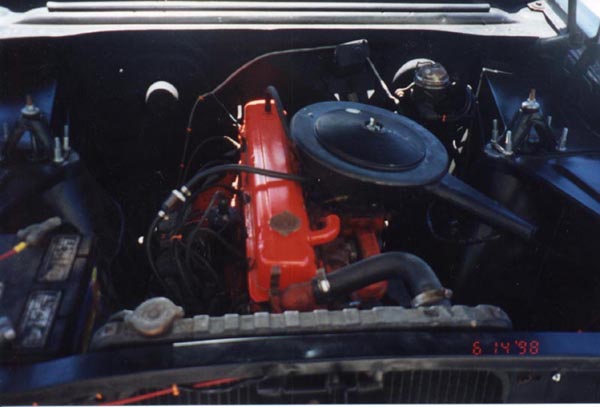

Original engine Compartment

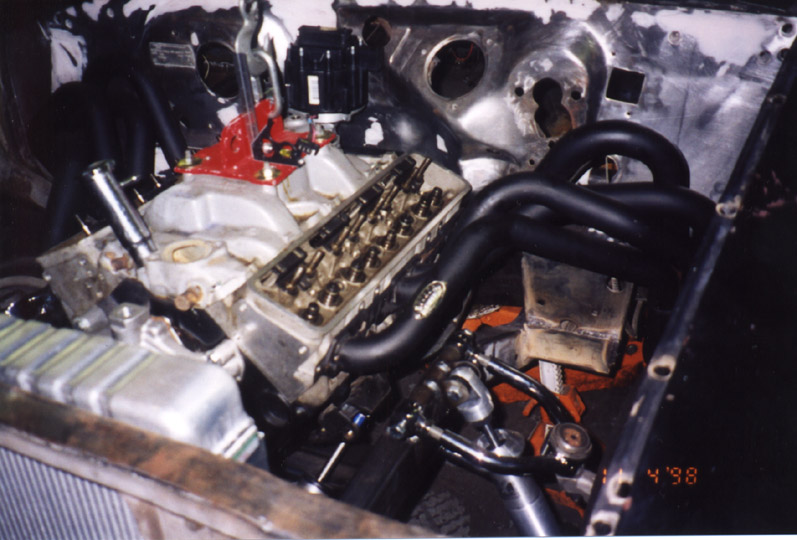

Engine compartment after fitting dummy block

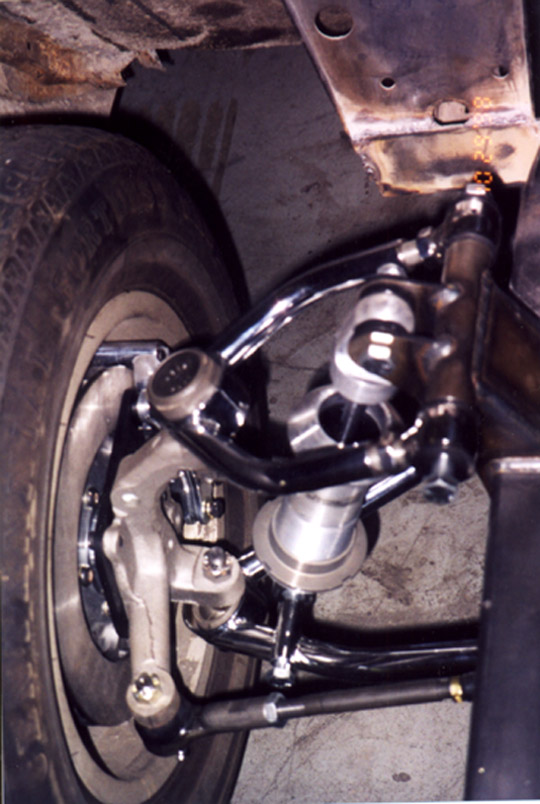

Chromed chromoly A-arms and coil-over shocks

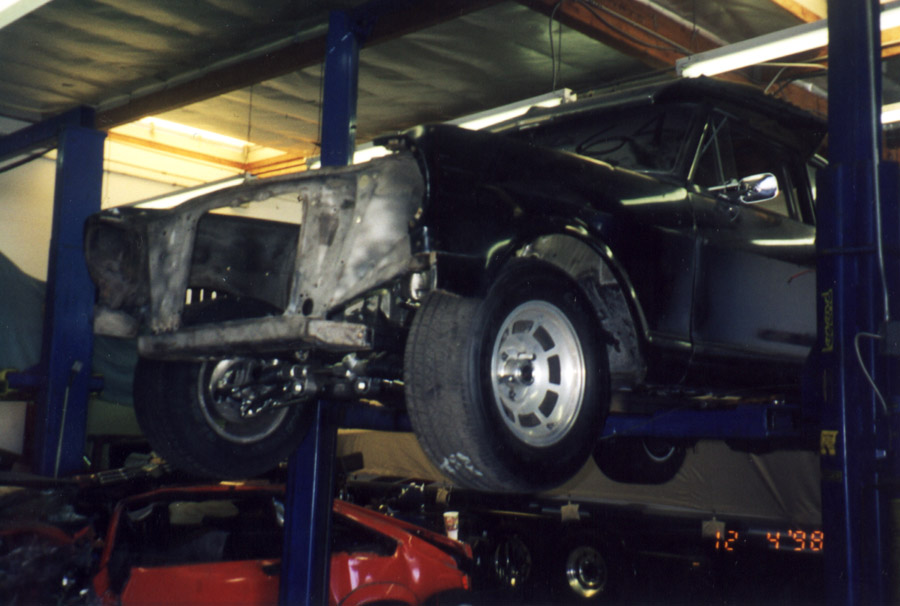

New tires and wheels

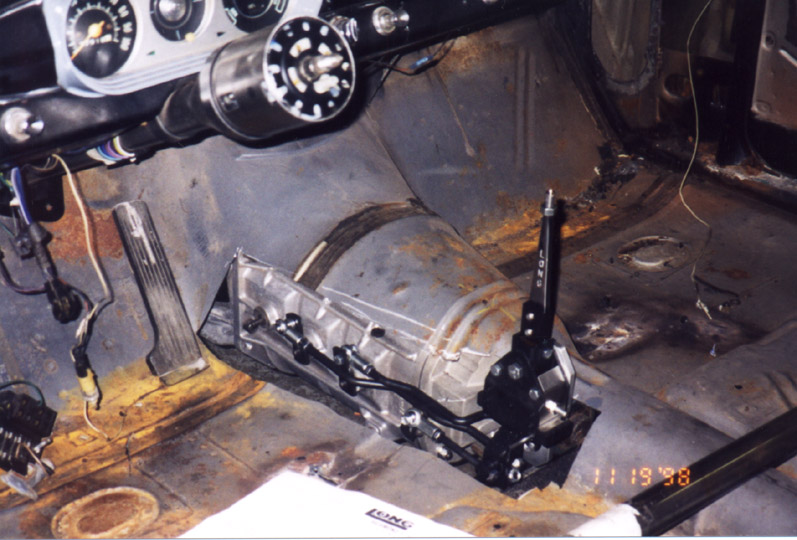

Richmond 6-spd is installed.   Notice the new steering column

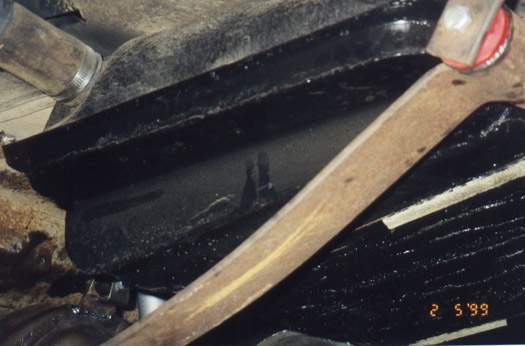

The leaf springs were moved inboard ~6".  Notice the gas tank has been modified so the leaf springs can fit.

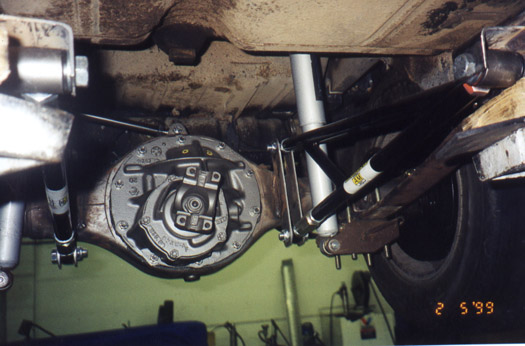

Completed rear end.  Notice the leaf spring, ladder bar, and shock.

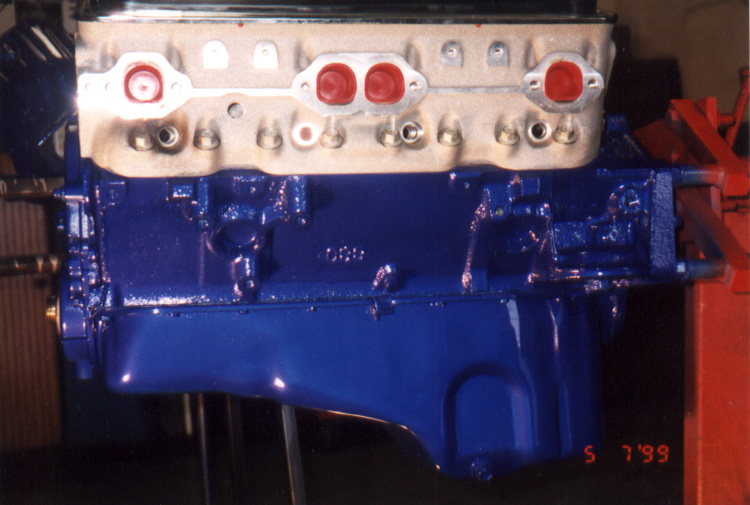

Painted engine

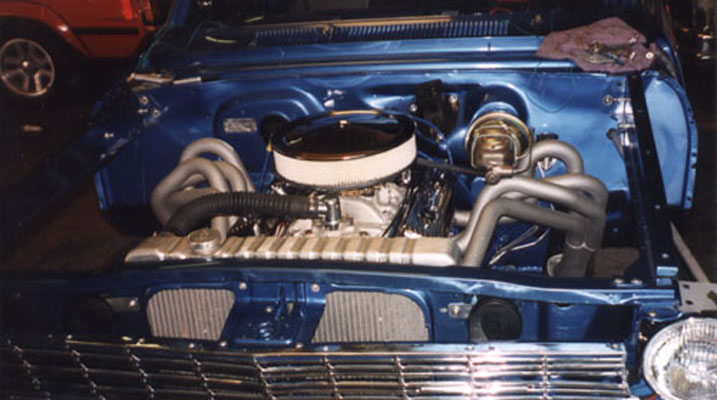

Finished engine compartment

View of the engine compartment from the left front
